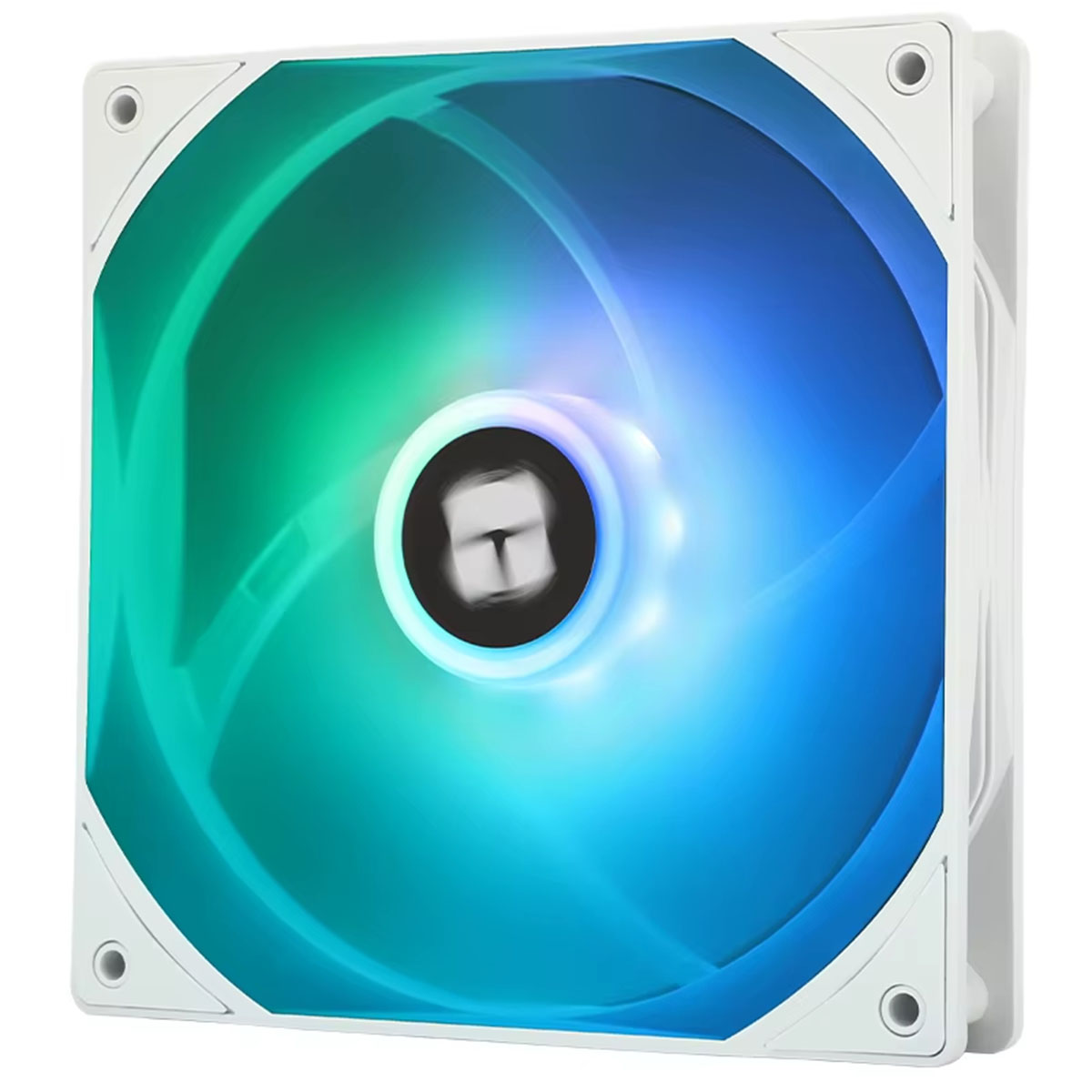

Thermalright TL-C14CW-S: A 140mm ARGB case fan with a maximum speed of 1500 RPM, airflow of 75.8 CFM, and noise level of 26.4 dBA. It uses an S-FDB bearing and a 4 pin PWM connector for quiet, automatic speed control. The fan also features a 3 pin ARGB connector to sync lighting with major motherboard software.
About Thermalright TL-C14CW-S
The Thermalright TL-C14CW-S is a standard sized 140mm fan with a 25mm thickness that fits perfectly in most modern PC cases. Its white frame and translucent blades are not just for looks because the translucent material helps diffuse the ARGB lights to create a softer and more even glow. The soft silicone pads on each corner also help stop annoying vibrations from transferring to your computer case.
This fan uses a high quality S-FDB bearing that helps it run quietly for a very long time without failing. You can plug it into your motherboard using the 4 pin PWM connector, which lets your computer automatically control the speed to balance cooling and noise. The separate 3 pin ARGB connector makes sure your lighting effects stay in sync with the rest of your system.
When this fan spins up to its maximum speed of 1500 RPM, it can push a strong airflow of 75.8 CFM through your case. It also creates a useful static pressure of 1.93 mmH2O, which is the force needed to push air through tight spots like a CPU cooler or a radiator. Even at this full speed, the fan’s noise level stays at a maximum of 26.4 dBA, so it won’t overpower your game or music.
Specifications TL-C14CW-S
| Parameter | Value |
|---|---|
| Category of Product | Computer Cooling |
| Subcategory of Product | Case Fan |
| Fan Size | 140 x 140 x 25 mm |
| Maximum Fan Speed | 1500 RPM ± 10% |
| Maximum Airflow | 75.8 CFM |
| Maximum Static Pressure | 1.93 mmH2O |
| Maximum Noise Level | 26.4 dBA |
| Bearing Type | S-FDB (Fluid Dynamic Bearing) |
| Power Connector | 4 pin PWM |
| ARGB Connector | 3 pin 5V |
| Rated Voltage | 12 V |
| Rated Current | 0.13 A |
| Fan Blade Count | 7 |
| Silicone Pads | Yes |
| Motherboard RGB Sync | ASUS, MSI, Gigabyte, ASRock |
| Daisy Chain Support | Yes |
| Warranty | 2 years |
| Shipping | 7-14 days |
| Price | $9 USD |
Reviews Thermalright TL-C14CW-S
I was building a white themed PC and these fans are perfect. The lighting is so smooth and soft, not harsh and bright like other fans I have used. My CPU temps dropped by about 5 degrees after I installed two of these as intakes, and I can barely hear them running at all.
Really solid cooling fan for the money. The air movement is strong and you can feel it pushing air across the whole case. My only small complaint is that you can hear a low hum when the speed goes over 1200 RPM, but I just set a quiet fan curve in my BIOS and now it is silent most of the time.
Installed this on my radiator for a push pull setup and it works great. The static pressure is high enough to push through the dense cooling fins without any trouble. My coolant temperature dropped 3 degrees and the ARGB syncs perfectly with my MSI motherboard using Mystic Light.
