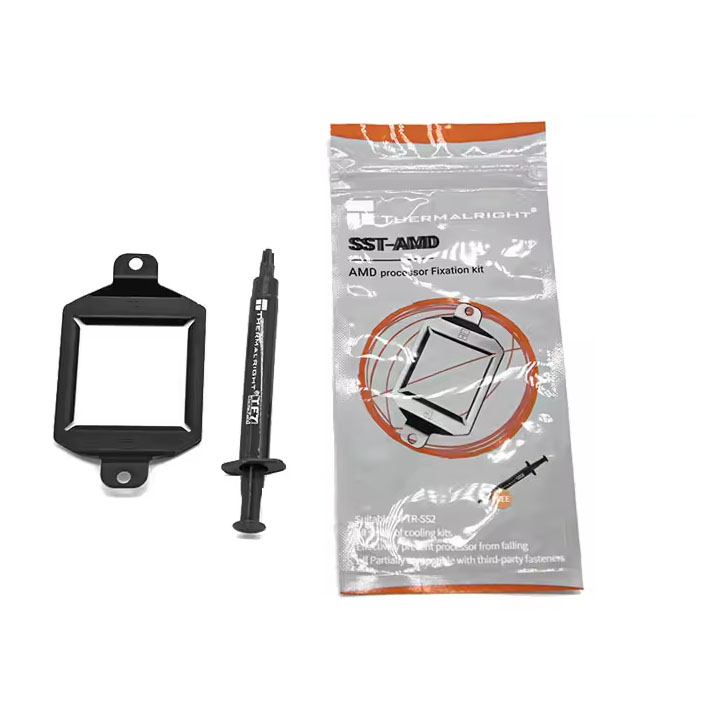

Thermalright SST-AMD: CPU Anti-Drop Bracket with 12.8 W/m-K TF7 thermal grease, non-conductive SK7 steel construction, and 6-year warranty. This bracket secures AMD CPUs to prevent accidental pull-out during cooler removal. It is compatible with AM2, AM3, AM4, FM1, and FM2 sockets, but works exclusively with Thermalright coolers.
What the Thermalright SST-AMD Bracket Does
The Thermalright SST-AMD bracket stops your AMD CPU from pulling out of the socket when you remove the cooler. This often happens with PGA type AMD Ryzen processors because the socket lock is weaker than on LGA designs. Using this bracket protects the delicate pins of the CPU, preventing bent or broken pins during cooler swaps or maintenance.
How the Bracket Keeps Your CPU Safe
The bracket fits around the metal heat spreader of the CPU and holds the processor down while you detach the cooler. It works with Thermalright’s SS2 pressure fasteners and most I type radiator mounts. The bracket does not replace the original backplate but adds a mechanical lock that stops the CPU from sticking to the cooler base.
Material, Size, and Electrical Safety
The bracket is made from SK7 steel with a black electrophoresis coating. It measures about 80 by 177 by 20 millimeters and weighs only 20 grams. The coating makes the bracket non conductive so there is no risk of shorting motherboard parts. You also get two thick silicone pads to help line up the bracket during installation.
Included TF7 Thermal Grease
The kit includes a 1 gram tube of Thermalright TF7 thermal grease. This paste has a thermal conductivity of 12.8 watts per meter Kelvin, which puts it among high performance pastes. TF7 is non conductive, carbon based, and works in temperatures from 150 degrees below zero up to 250 degrees above zero Celsius.
Compatible Sockets and Cooler Restriction
The SST AMD bracket works with AMD sockets AM2, AM3, AM4, FM1, and FM2. It covers a wide range of both old and current AMD platforms. The bracket is made only for use with Thermalright CPU coolers, so it will not fit coolers from other brands. Within that limit, the bracket is easy to install with the included silicone pads and TF7 grease.
Specifications Thermalright SST-AMD
| Parameter | Value |
|---|---|
| Category of product | Computer cooling accessory |
| Subcategory of product | CPU retention bracket |
| Brand | Thermalright |
| Model | SST-AMD |
| Part number | LM-SST-AMD |
| Material | SK7 steel with black electrophoresis coating |
| Electrically conductive | No |
| Product dimensions (length) | 17.10 cm |
| Product dimensions (width) | 7.70 cm |
| Product dimensions (height) | 7.10 cm |
| Bracket dimensions (LxWxH) | 80 x 177 x 20 mm |
| Weight (bracket only) | 20 g |
| Weight (package) | 26 to 28 g |
| Compatible AMD sockets | AM2, AM3, AM4, FM1, FM2 |
| Compatible coolers | Thermalright only (SS2 pressure type, I-type radiators) |
| Included TF7 thermal grease quantity | 1 gram |
| TF7 thermal conductivity | 12.8 W/m·K |
| TF7 operating temperature range | -150 °C to +250 °C |
| TF7 composition | Carbon based, non conductive |
| Included silicone pads | 2 thick pads |
| Warranty | 2 years |
| Delivery | 7-14 days |
| Price (USD) | $8 |
Reviews Thermalright SST-AMD
I was really nervous about swapping coolers on my Ryzen build because I had heard horror stories about CPUs getting ripped out. This little bracket gave me total peace of mind. Installing it took maybe five minutes, and the included TF7 paste spread easily. My new cooler came off without a fight, and the CPU stayed exactly where it belonged. Worth every penny.
Bought this along with a new Thermalright cooler for my old AM4 system. The bracket fits snugly around the CPU, and you can tell it’s made from quality steel. Dropped one star because the instructions could be clearer for first time builders, but a quick video search sorted me out. The thermal paste that came with it is surprisingly good, my temps dropped by a few degrees compared to my old paste.
Finally decided to upgrade my cooler, and I wasn’t taking any chances with my 5800X3D. This bracket is lightweight but feels rock solid once it’s in place. The non conductive coating gave me extra confidence since I tend to be a bit clumsy with tools. The silicone pads helped keep everything aligned while I tightened the cooler down. After three cooler swaps for testing, not once did the CPU move. Highly recommend this for any AMD user.
