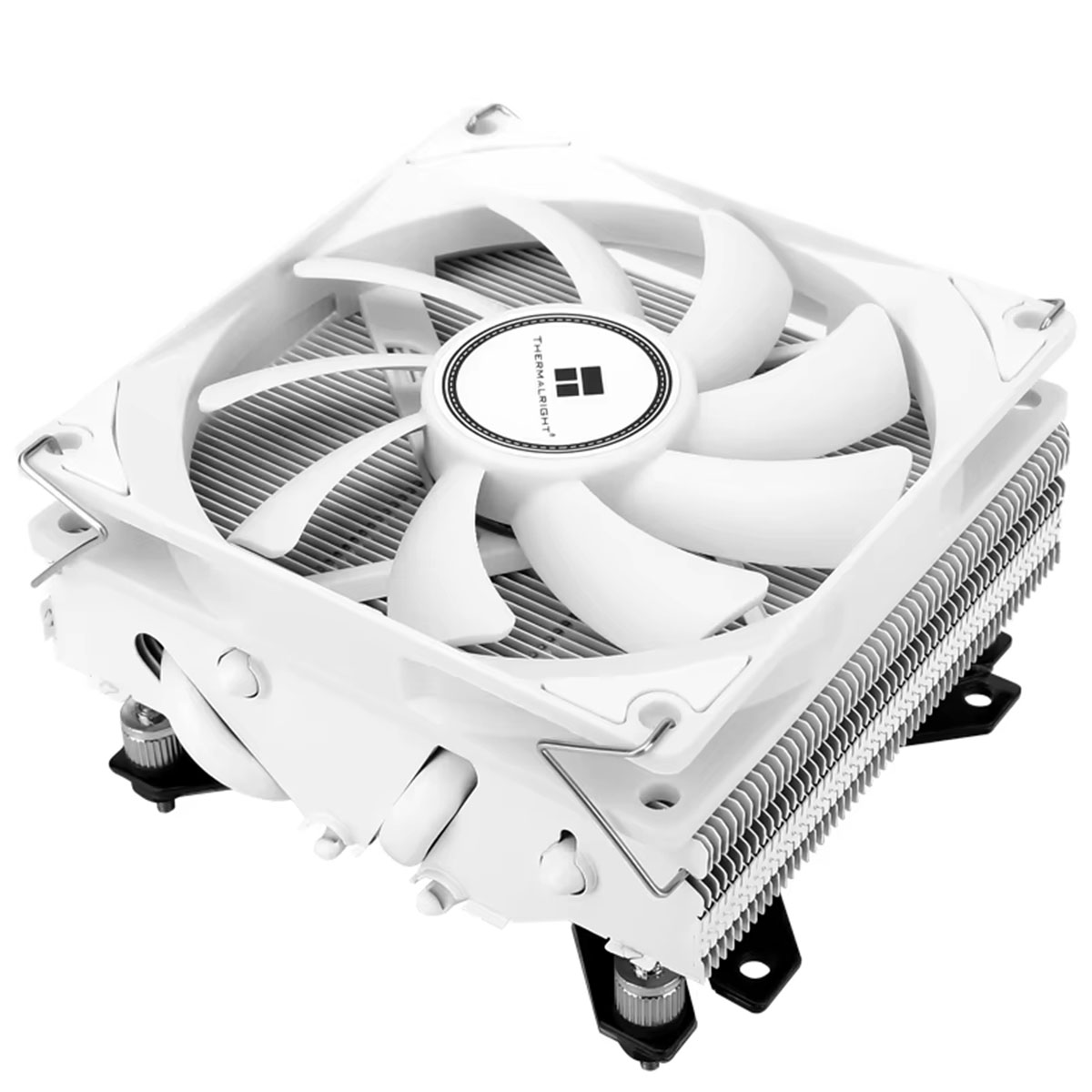

Thermalright AXP90 X47: Low profile CPU cooler with 4 heat pipes and a 92 mm slim PWM fan. The 47 mm height fits easily inside compact ITX cases without blocking other components. It supports Intel LGA 1700/1200/115X and AMD AM4/AM5 sockets for wide processor compatibility.
Compact Size for Tight Builds
The Thermalright AXP90 X47 is a low profile CPU cooler with a total height of just 47 mm. This slim design makes it perfect for small form factor ITX cases where every millimeter matters. The heatsink itself measures 94.5 mm by 95 mm, allowing it to fit snugly on most motherboards without blocking other slots. Its down pressure design blows air right onto the motherboard, which also helps cool the parts around the CPU socket.
Smart Cooling Technology
Four 6 mm heat pipes use AGHP anti gravity technology to keep cooling strong no matter how you mount your case. This means the cooler works the same whether your PC stands upright or lies on its side. The secondary reflow soldering process bonds the heat pipes and fins tightly together for better heat transfer. A pure copper base with nickel plating pulls heat away from your processor quickly and resists rust over time.
Efficient 92 mm Fan
The 92 mm TL 9015 fan is only 15 mm thin but still pushes up to 42.58 CFM of air. It spins at speeds up to 2700 RPM and creates a maximum noise of just 22.4 dBA, so you get good cooling without a loud racket. The hydraulic bearing helps the fan run smoothly and last longer. A 4 pin PWM connector lets your motherboard control the fan speed automatically based on your CPU temperature.
Wide Socket Support
This cooler works with both Intel and AMD modern processors. You can use it on Intel LGA 1700, 1200, and 115X series as well as AMD AM4 and AM5 sockets. The package comes with metal mounting brackets for each platform and a backplate fastener system that makes installation secure. This wide compatibility means you can keep using the same cooler if you switch CPU brands later.Thermalright AXP90 X47: Low profile CPU cooler with 4 heat pipes and a 92 mm slim PWM fan. The 47 mm height fits easily inside compact ITX cases without blocking other components. It supports Intel LGA 1700/1200/115X and AMD AM4/AM5 sockets for wide processor compatibility.
Specifications Thermalright AXP90 X47
| Parameter | Value |
|---|---|
| Category | Computer Hardware |
| Subcategory | CPU Cooler |
| Heatsink length | 94.5 mm |
| Heatsink width | 95 mm |
| Heatsink height (radiator) | 32 mm |
| Total height with fan | 47 mm |
| Weight with fan | 310 g |
| Heat pipe count | 4 |
| Heat pipe diameter | 6 mm |
| Heat pipe technology | AGHP |
| Base material | C1100 nickel plated copper |
| Fin material | Aluminum |
| Fin thickness | 0.3 mm |
| Fin gap | 1.6 mm |
| Fan model | TL-9015 |
| Fan size | 92x92x15 mm |
| Fan speed max | 2700 RPM ±10% |
| Fan air flow max | 42.58 CFM |
| Fan static pressure max | 1.33 mmH₂O |
| Fan noise max | 22.4 dBA |
| Fan bearing | Hydraulic |
| Fan connector | 4 pin PWM |
| Fan voltage | 12 V |
| Fan current | 0.2 A |
| Intel socket support | LGA 1700/1200/115X |
| AMD socket support | AM4/AM5 |
| Warranty | 2 years |
| Shipping | 7-14 days |
| Price | $49 USD |
Reviews Thermalright AXP90 X47
Finally a cooler that fits my tiny case without breaking the bank. Installation was straightforward and the fan is surprisingly quiet even when gaming. My Ryzen 7600 stays under 75C under full load. The low height gave me just enough room to close my case panel.
Picked this up for my ITX build and it works great. The fan speed control through PWM is smooth and I barely notice any noise while working. Lost one star because the mounting pressure felt a bit high at first, but it settled in fine after a few days. Really happy with the temps overall.
Needed something low profile for my media center PC and this nailed it. The four heat pipes do a solid job pulling heat away from the CPU. I love that it supports both my old Intel board and my new AMD upgrade without buying extra parts. Very pleased with the purchase.
