Thermalright HR–10 2280 PRO DIGITAL: Active M.2 2280 SSD cooler with a 30 mm PWM fan (3500–6500 RPM), four 5 mm copper heat pipes, a 14.8 W/mK Extreme Odyssey II thermal pad, and an ARGB digital display for real–time temperature and speed monitoring. The display connects via USB 2.0 and works with TRCC software. It supports PCI–E 5.0 SSDs and fits most ATX and microATX motherboards with standard M.2 2280 slots.

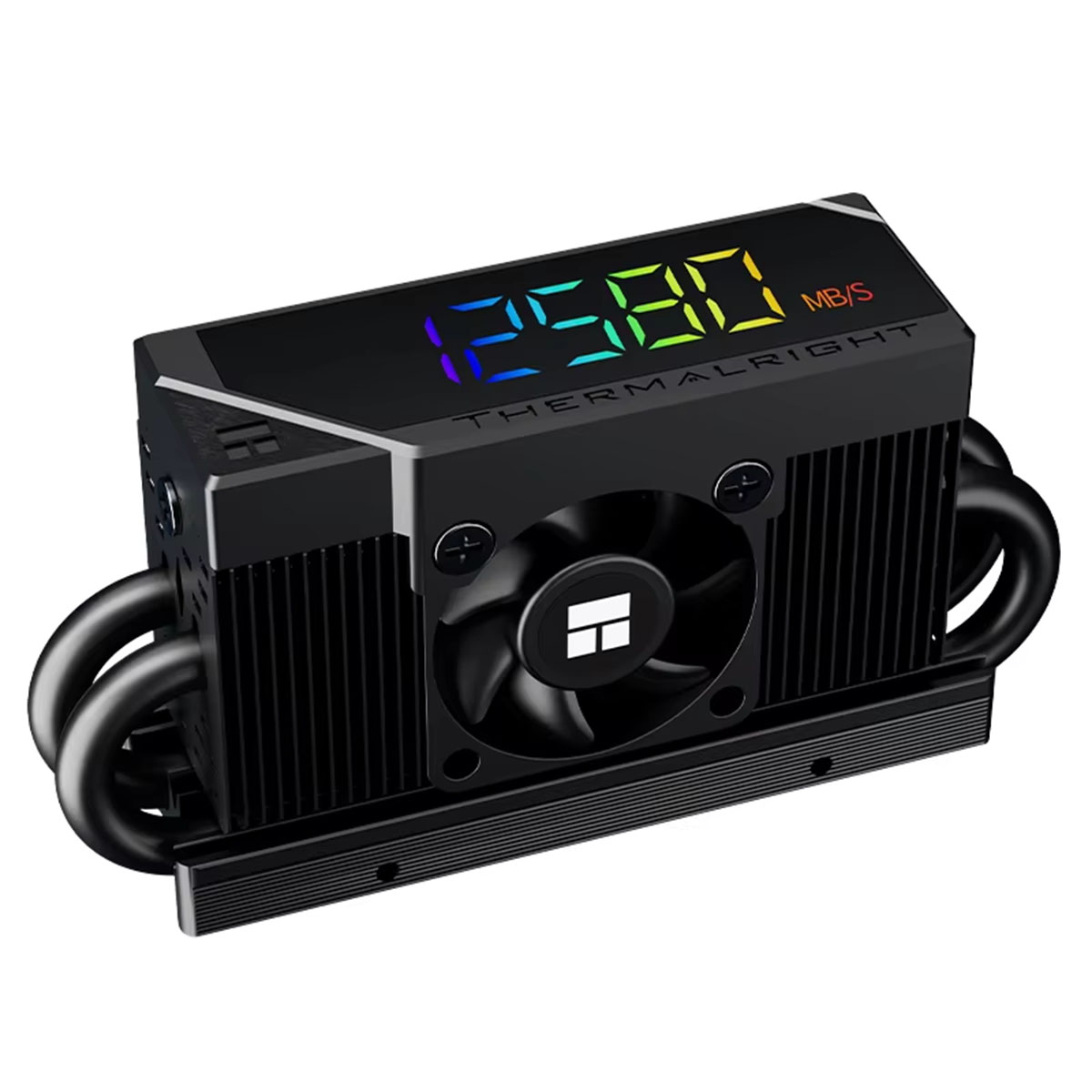

About Thermalright HR–10 2280 PRO DIGITAL
The Thermalright HR–10 2280 PRO DIGITAL keeps your SSD cool with an active 30 mm PWM fan that spins between 3500 and 6500 RPM. This fan connects to a 4–pin header on your motherboard and runs on 12 V DC using only 0.05 A. With this fan pushing air directly over the heatsink, your SSD stays at safe temperatures even when you are moving huge files or playing demanding games for hours.
The cooler pulls heat away from your drive using four 5 mm thick nickel–plated copper heat pipes. These pipes press against the SSD through a mirror–finish nickel–plated copper base plate. From there, the heat moves into a dense aluminum fin stack with extra surface area to let the heat escape faster. The reflow soldering process used here makes sure each heat pipe works at its best.
To get even better heat transfer, Thermalright includes the Extreme Odyssey II silicon thermal pad with a 14.8 W/mK rating. This soft pad fills every tiny gap between the SSD and the cooler’s cold plate. A stainless steel bottom cover also helps move heat away from the back of the drive. Together, these parts create a strong cooling system for high speed SSDs.
The cooler also includes an ARGB digital display that shows real time SSD temperature, read and write speeds, and drive usage. You connect the display to your motherboard using a standard USB 2.0/9–pin header. Then you use the free Thermalright Control Center software to choose what information you want to see on the screen. This lets you keep an eye on your drive‘s performance without opening any programs.
The whole unit measures 90.3 mm long, 26 mm wide, and 51 mm tall. It fits standard M.2 2280 NVMe SSDs and works perfectly with PCI–E 5.0 drives. You can install it on most ATX or microATX motherboards, but it is smart to check the space around your M.2 slot if you have a very small computer case. The cooler comes in both black and white colors to match your build.
Specifications HR–10 2280 PRO DIGITAL
| Specification | Value |
|---|---|
| Category of product | Computer cooling component |
| Subcategory of product | M.2 SSD active cooler |
| Model | HR-10 2280 PRO DIGITAL |
| Color options | Black, White |
| Compatible SSD form factor | M.2 2280 |
| PCIe support | PCI–E 5.0, 4.0 |
| Cooler type | Active with fan |
| Heat pipe configuration | 4x 5 mm nickel plated copper |
| Base plate material | Mirror–finish nickel plated copper |
| Thermal pad | Extreme Odyssey II silicon |
| Thermal pad conductivity | 14.8 W/mK |
| Bottom cover material | Stainless steel |
| Fan size | 30 mm x 30 mm x 10 mm |
| Fan speed range | 3500–6500 RPM ±10% (MAX) |
| Fan rated voltage | 12 V DC |
| Fan current | 0.05 A |
| Fan connector type | 4–pin PWM |
| Display type | ARGB segment digital display |
| Display connection | USB 2.0/9–pin header |
| Software required | Thermalright Control Center (TRCC) |
| Product dimensions (LxWxH) | 90.3 mm x 26 mm x 51 mm |
| Warranty | 2 years |
| Shipping | 7–14 days |
| Price | $33 USD |
Reviews Thermalright HR–10 2280 PRO DIGITAL
Really happy with this purchase. The display looks awesome inside my pc case and I can see my drive temperature at a glance. Installation was simple and the fan is quiet even when it spins up. My gen5 drive stays cool during big file transfers now.
Works well and dropped my ssd temps by about 15 degrees. The rgb screen is a nice bonus but you need to run the software to customize it. I had to double check the clearance because my cpu cooler is huge but it fit fine. Good value for the money.
Never thought I would enjoy looking at a heatsink but here we are. The display shows the read and write speeds which is actually cool to watch when loading games. Build quality feels solid and the heat pipes do their job. Highly recommend for anyone with a fast drive.
