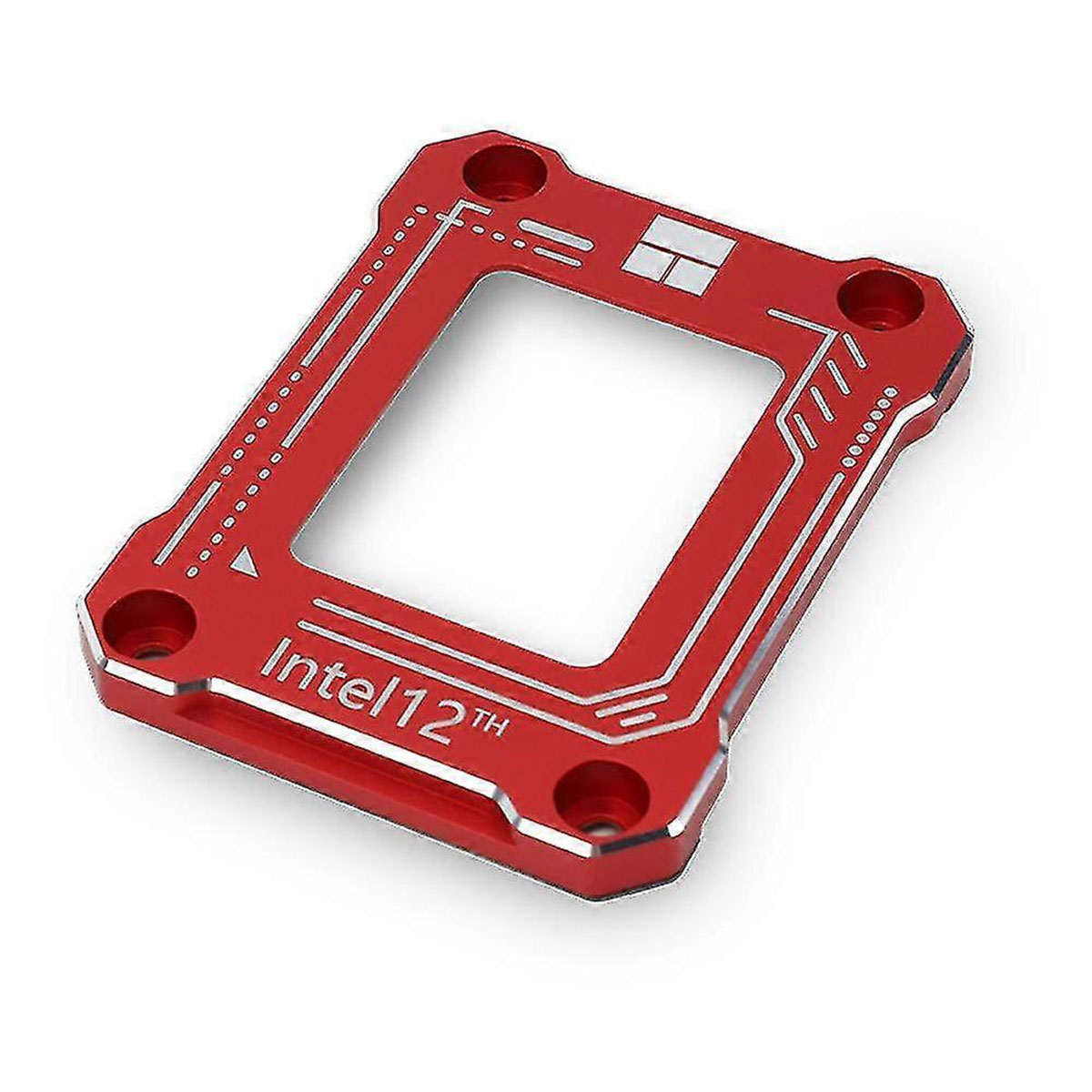

Thermalright LGA17XX-BCF: CPU bending correction frame. It replaces the standard Intel LGA1700 retention mechanism to fix and prevent CPU warping. Made of CNC aluminum, it ensures even mounting pressure for 12th-14th Gen processors .
About Thermalright LGA17XX-BCF
The Thermalright LGA17XX-BCF solves a specific physical problem for Intel PC builders. The standard locking mechanism on LGA 1700 motherboards pushes too hard on the middle of the processor. This pressure can bend the chip’s outer shape over time. The BCF bracket replaces that uneven setup to spread the force out evenly. This keeps your processor flat and safe from long term damage .
This bracket fits a wide range of modern hardware without any trouble. It works with Intel’s 12th, 13th, and 14th generation CPUs. You can install it on H610, B660, Z690, or Z790 motherboards. The frame uses the existing backplate that came with your board. This makes it a direct replacement part, not an extra add on that might not fit .
The physical build of this fastener shows high attention to quality standards. It is made from a solid block of aluminum alloy using a CNC machine. The surface gets a special sandblasted and anodized treatment to prevent rust. The main body is exactly 54mm by 70mm in size and 6mm thick. It weighs only 20 grams but feels very sturdy in your hand. There are also small insulation feet that match factory specs to avoid electrical issues .
You get everything required for the swap right inside the box. Thermalright includes the correction frame itself and a simple L shaped screwdriver. You also receive a 2 gram tube of TF7 thermal paste. To install it, you gently remove the stock Intel part, keep the metal backplate on the motherboard, and then screw this new frame down tightly. It only replaces the CPU holder, not the cooler mounting clips .
Specifications LGA17XX-BCF
Reviews Thermalright LGA17XX-BCF
I was worried about my new processor running too hot. Installing this frame was super easy and dropped my gaming temps by 5 to 10 degrees Celsius. You just have to be careful not to overtighten the screws. A must have for any 14900K owner [citation:7].
Got this to fix a bending issue I saw on my PC forum. The metal frame feels very premium for the low price. Installation took five minutes with the included L shaped tool. I took off one star because I wish it came in more colors, but it works perfectly [citation:3].
Much better than paying double for the competing brand. This bracket rests right on the motherboard and feels very sturdy. My cooler makes much better contact with the chip now. Idle temps are down to 25 degrees in a warm room [citation:7].
